Reticle Management & Lithography
Delivering an Automated Advantage for Our Customers
In semiconductor manufacturing, reticles are among the most valuable and performance-critical assets in the lithography process, where increasing complexity and advanced node scaling demand high sensitivity to contamination, vibration, environmental exposure, and handling variability. Even minor defects can impact yield, process integrity, and device performance.
Brooks provides reticle management systems that control contamination, environmental conditions, and handling across lithography processes—protecting reticle integrity, supporting predictable availability, and maintaining high-volume manufacturing performance.
Understanding High-Value Problems in Reticle Management
In advanced semiconductor manufacturing, reticle management presents a set of challenges that directly impact lithography performance, asset protection, and production continuity. Reticles must be protected from contamination, vibration, and environmental variability while remaining available to support lithography throughput. At the same time, fabs must manage storage density, purge gas consumption, and cleanroom footprint without introducing risk to reticle integrity or disrupting production. As reticle complexity increases and asset value rises, disciplined reticle management becomes a critical requirement for maintaining yield and high-volume manufacturing performance.
Reticle Management That Protects Lithography Performance
Brooks approaches reticle management to ensure all elements are engineered to protect reticle integrity and lithography performance. By combining controlled storage environments, automated handling, and asset traceability, Brooks helps reduce contamination exposure, limit handling variability, and ensure reticles are available when needed to support high-volume lithography operations. This approach reduces risk to high-value reticle assets while improving predictability, stability, and production continuity across lithography processes.
Proven in Semiconductor Manufacturing
>50% of Reticles are Stored in Brooks Systems
Over 1,000 systems deployed.
Best Cost of Ownership Tested >45 Years
Lowest footprint, cleanest storage, optimized gas consumption for sustainability.
Trusted to Manage >$100B Reticle Fab Assets
Contamination-free, earthquake-proof storage.
Brooks’ Structured Reticle Management Framework
Brooks applies a structured approach to reticle management that combines environmental control, automated handling, and traceability to protect reticle integrity and support consistent lithography performance.
Environmental Protection and Integrity Control
Controlled storage environments reduce contamination exposure, vibration, and environmental variability that can compromise reticle performance.
Automated Handling and Transfer
Automated systems enable consistent handling and reduce variability, protecting reticles from damage or distortion.
Structured Tracking and Asset Visibility
Structured tracking and inventory visibility enable management of reticle location, usage, and availability to support consistent production.
Reticle Management Solutions
Brooks delivers reticle management systems that support storage, environmental control, and asset tracking to maintain reticle integrity and ensure consistent lithography performance.
Reticle Storage and Environmental Control Systems
Control storage conditions to protect reticles from contamination, vibration, and environmental variability.
Brooks solutions:

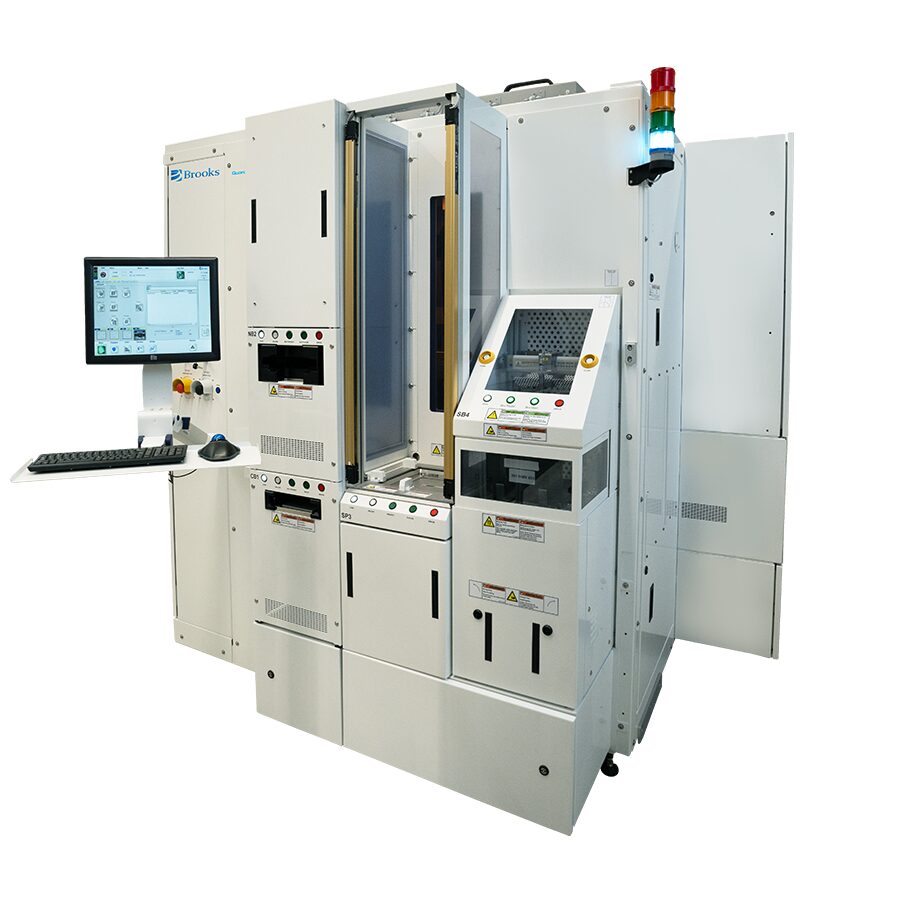

GuardianPro® 1900P, GuardianPro® X / F / S, GuardianPro® C platforms
Automated Reticle Handling Systems
Automated systems reduce handling variability and protect reticles from damage during transfer and use.
Brooks solutions:
GuardianPro® C, PuroMaxx® 2
Reticle Tracking and Asset Visibility
Structured tracking systems provide visibility into reticle location, usage, and availability.
Brooks solutions:
Tracking and visibility capabilities across GuardianPro® platforms
Lowering Total Cost of Ownership Across the Equipment Lifecycle
Reduce Reticle-Related Production Risk
Protect reticles from contamination, handling damage, and variability that impact lithography performance.
Extend Reticle Asset Life
Control environmental exposure and reduce handling variability to extend asset life and reduce replacement frequency.
Maintain Lithography Throughput
Ensure reticles are available and stable to support consistent exposure and production continuity.
Pathway Service
Highly knowledgeable, local support teams available for installation, upgrades, and spares.
Improve Reticle Management Performance
Connect with Brooks to protect reticle integrity, improve availability, and support consistent lithography performance.
